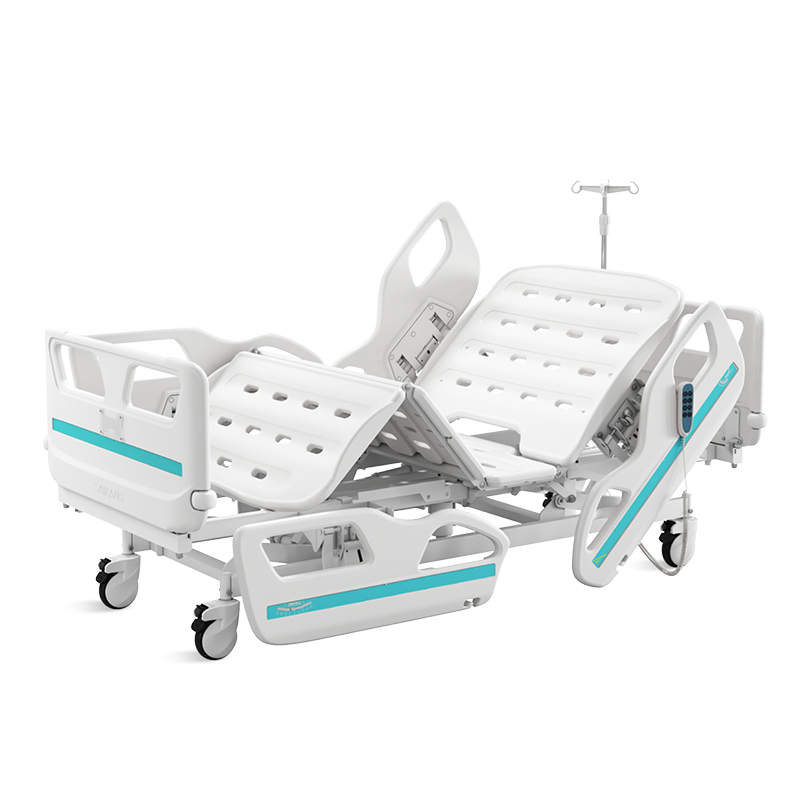

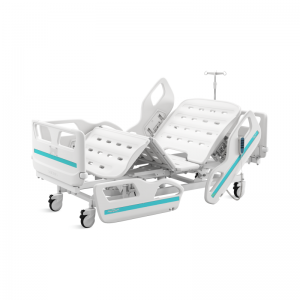

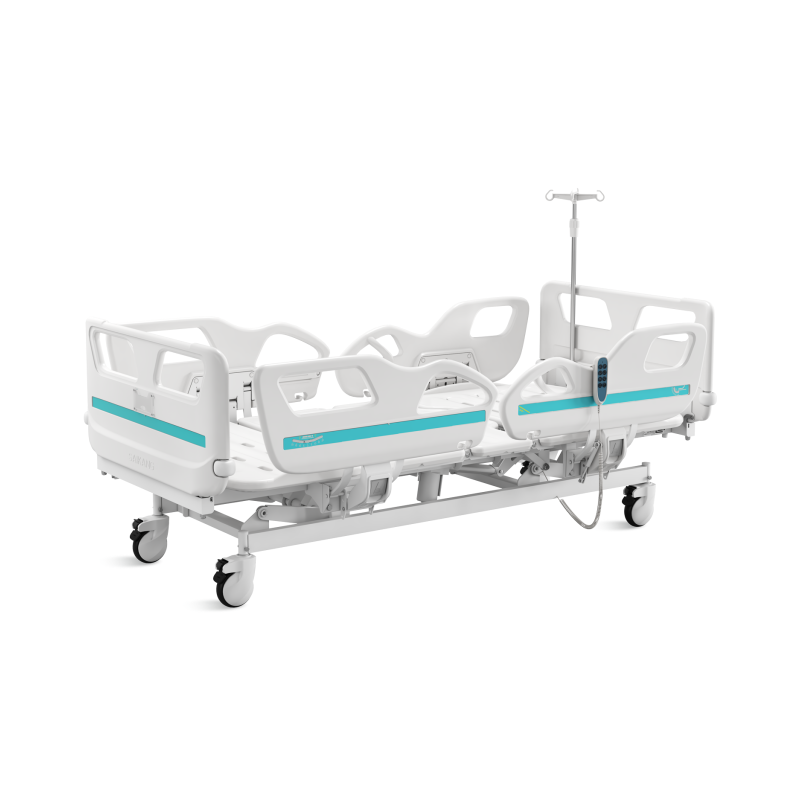

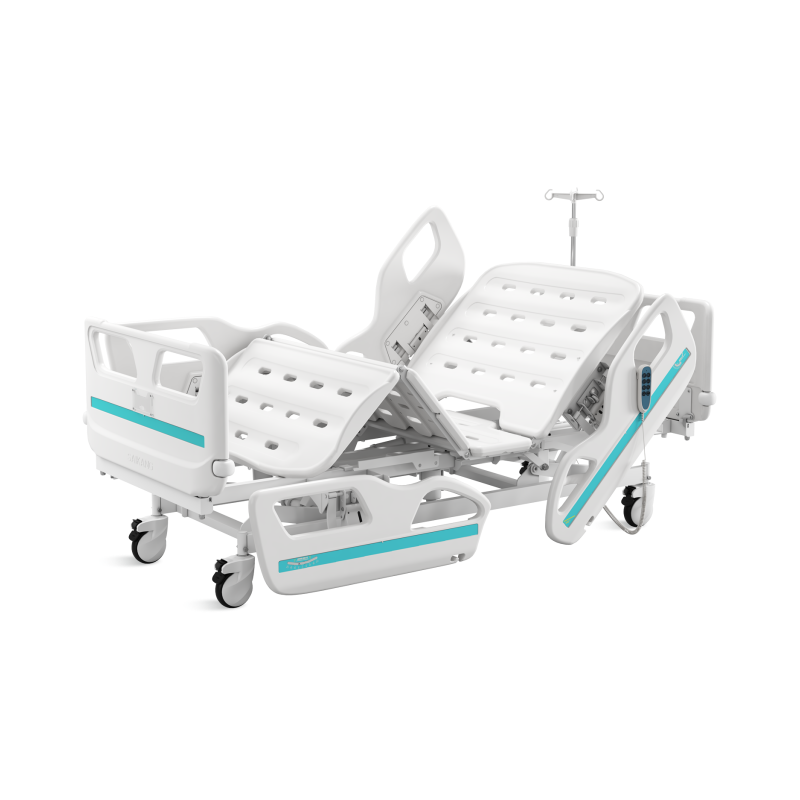

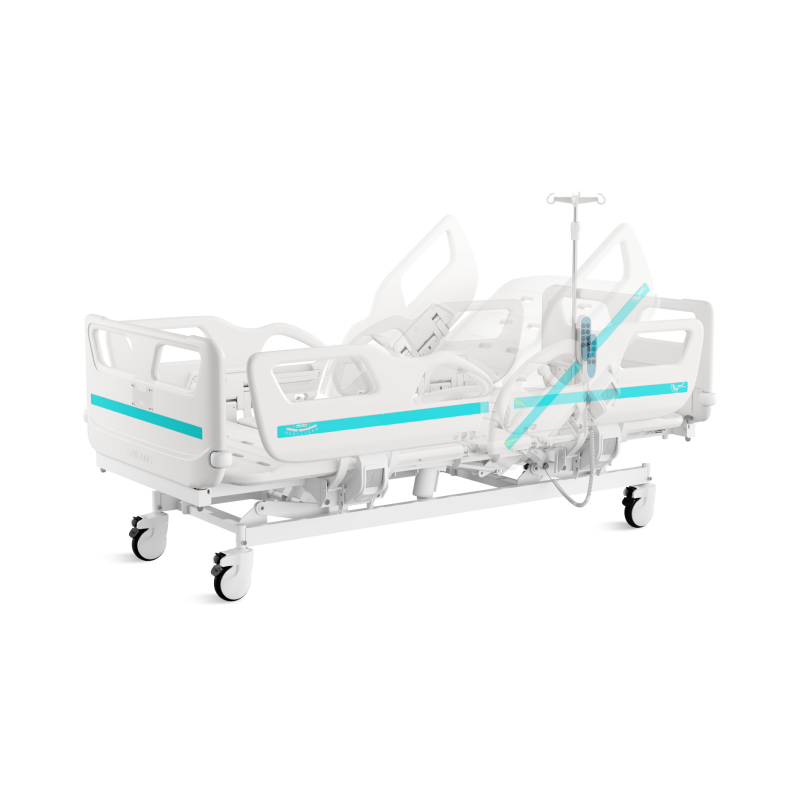

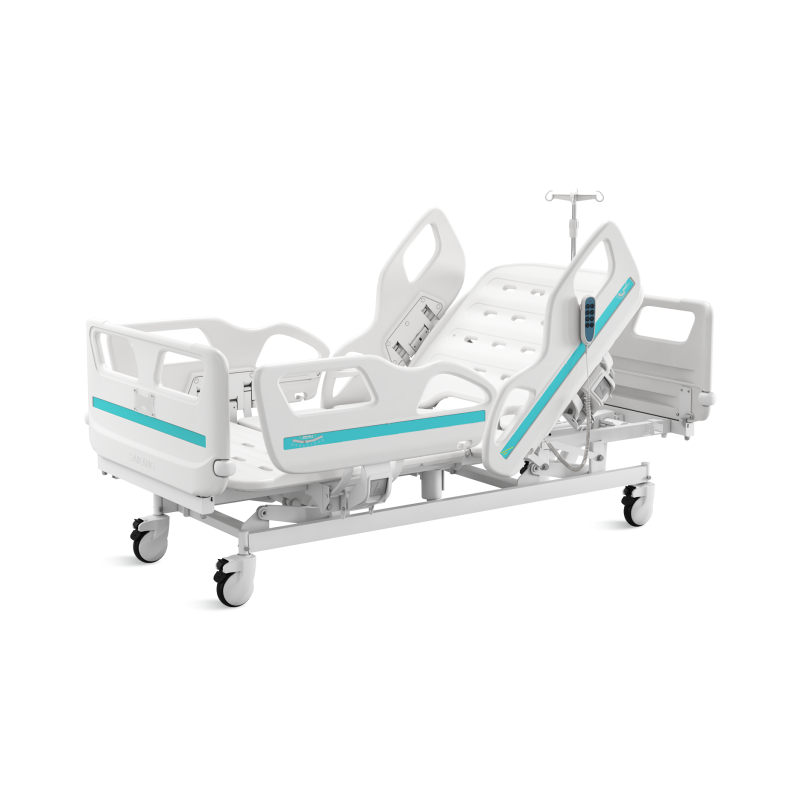

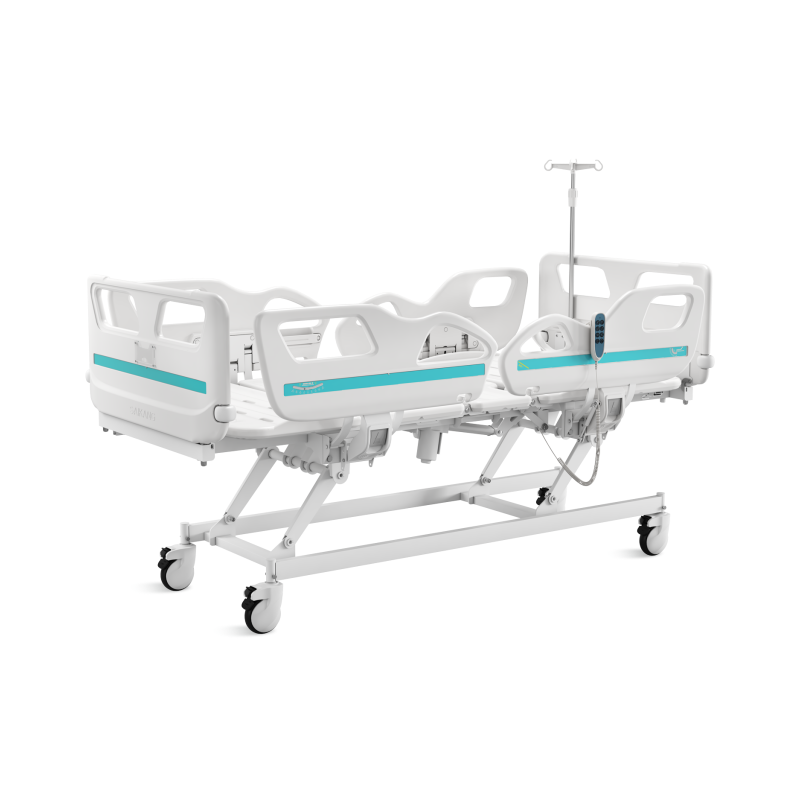

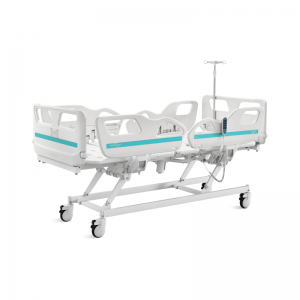

NWD701V6v Electric hospital bed
Important quality control
* PP side rail extra height
* PP bed platform with integrated mattress retainer
* PP bed ends with safe lock with Φ65 bumper wheels
Options
* Battery back-up
* Bed extension
* Integrated control panel
* Nurse controller
* Auto break at 30°
* Emergency stop button
* Night light
* Manual CPR
* X-ray translucent mattress platform (back section)
* Utility shelf
* Trapeze bracket/pole
Technical parameters
| External size (LxWxH) | 2085x1025x430-740mm |
| Mattress platform | 1925x900mm |
| Safe working load | 250kg |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-46°(±10°) |
Technical configuration
| Linear motor | 3pcs |
| Hand controller | 1pc |
| 5” Covered Castors | 4pcs |
| PP side rail extra height | 1set |
| PP bed ends with safe lock with Φ65 bumper wheels | 1set |
| PP bed platform with integrated mattress retainer | 1set |
| Patent angle indicator for back-rest and trendelenburg position | 4pcs |
| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
