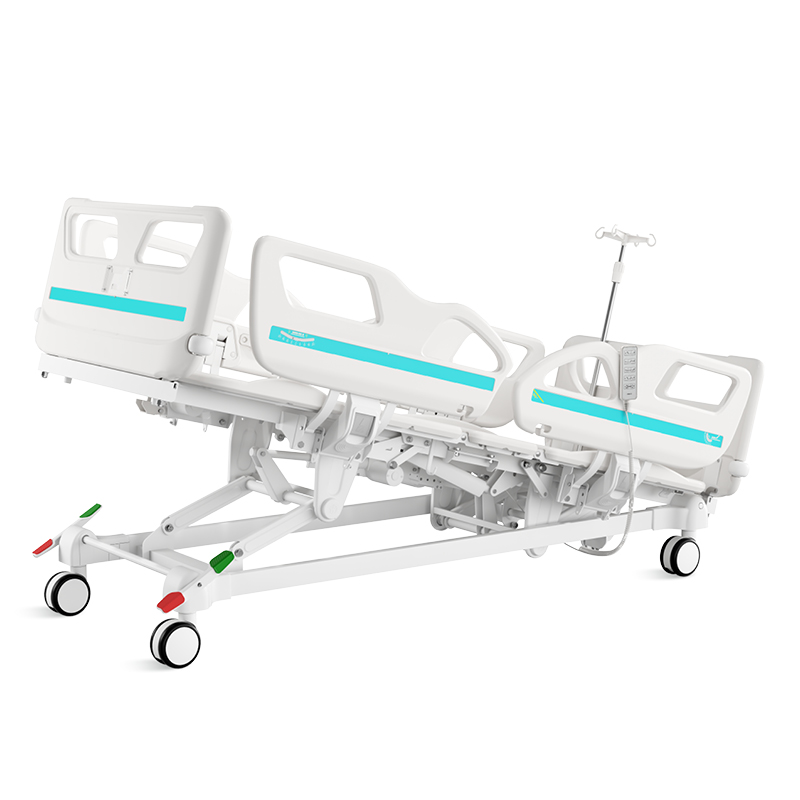

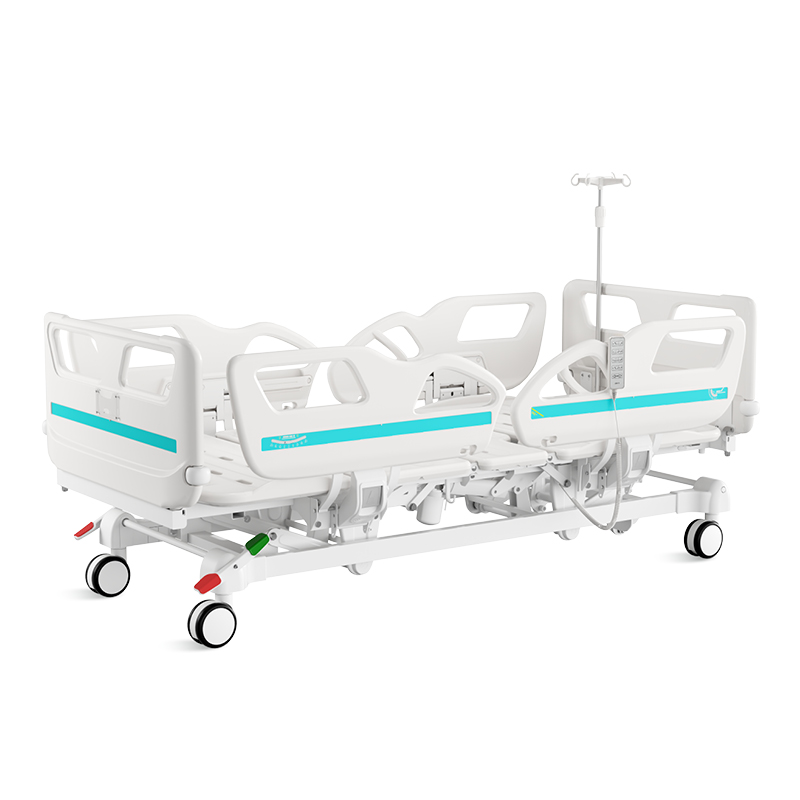

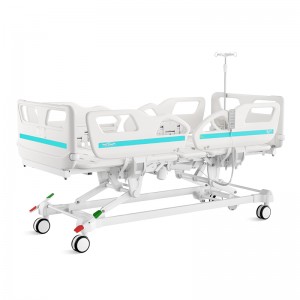

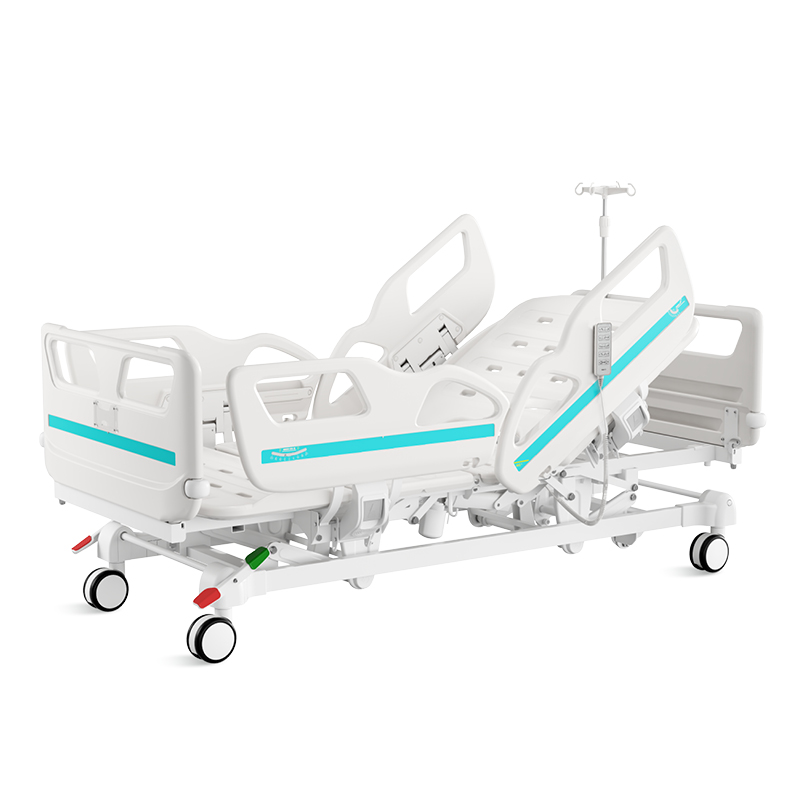

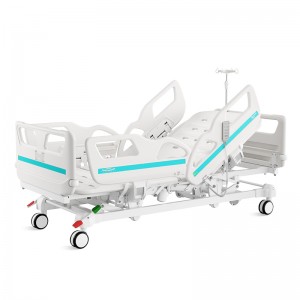

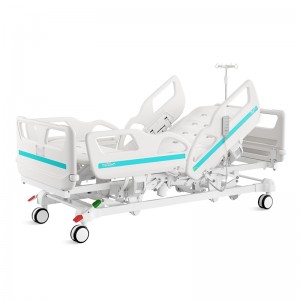

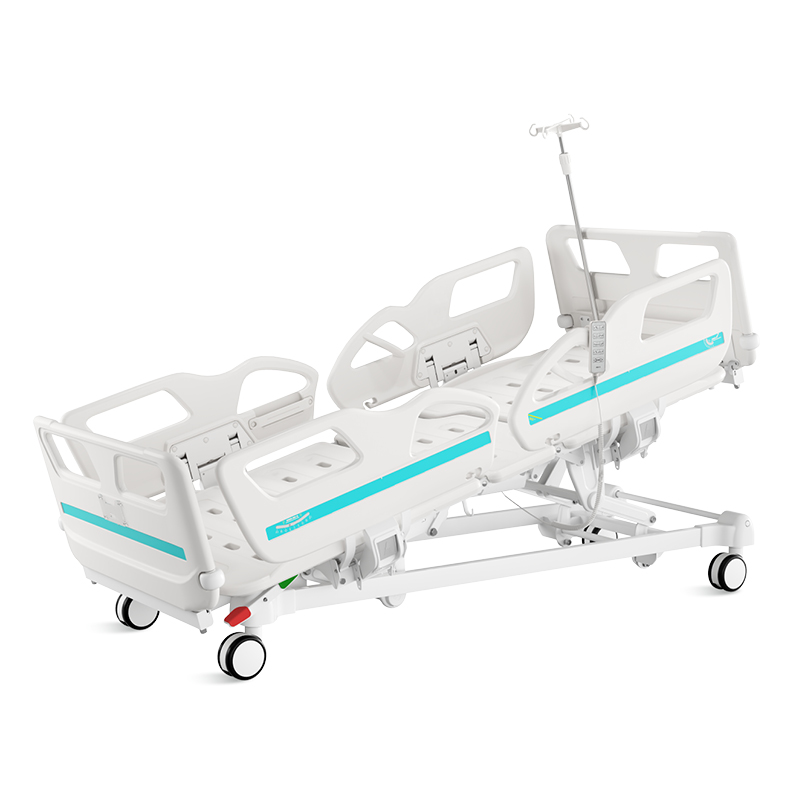

NWD701V8v Electric hospital bed
Opotional
*Emergency stop button
*Trapeze bracket/pole
Technical parameters
| External size (LxW): | 2085×1025 mm |
| Mattress platform: | 1925×900 mm |
| Safe working load: | 250 kg |
| Height adjustment: | 455-745 mm |
| Back-rest adjustment: | 0-75° (±5°) |
| Knee-rest adjustment: | 0-32° (±5°) |
| Reverse Trendelenburg: | 0-12° |
| Trendelenburg: | 0-12° |
| Angle indicator: | 0-90° |
| Auto-regression: | 65+57mm |
| Position line: | 30° |
| Voltage and frequency: | 100-240 V · 50/60 Hz |
| Plug as required (hospital grade) |
Technical configuration
| Linear motor | 4pcs |
| Hand controller | 1pc |
| 5” Covered Castors | 4pcs |
| PP side rail extra height | 1set |
| PP bed ends with safe lock with Φ65 bumper wheels | 1set |
| PP bed platform with integrated mattress retainer | 1set |
| Patent angle indicator for back-rest and trendelenburg position | 4pcs |
| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
| Central locking pedal | 2pcs |
