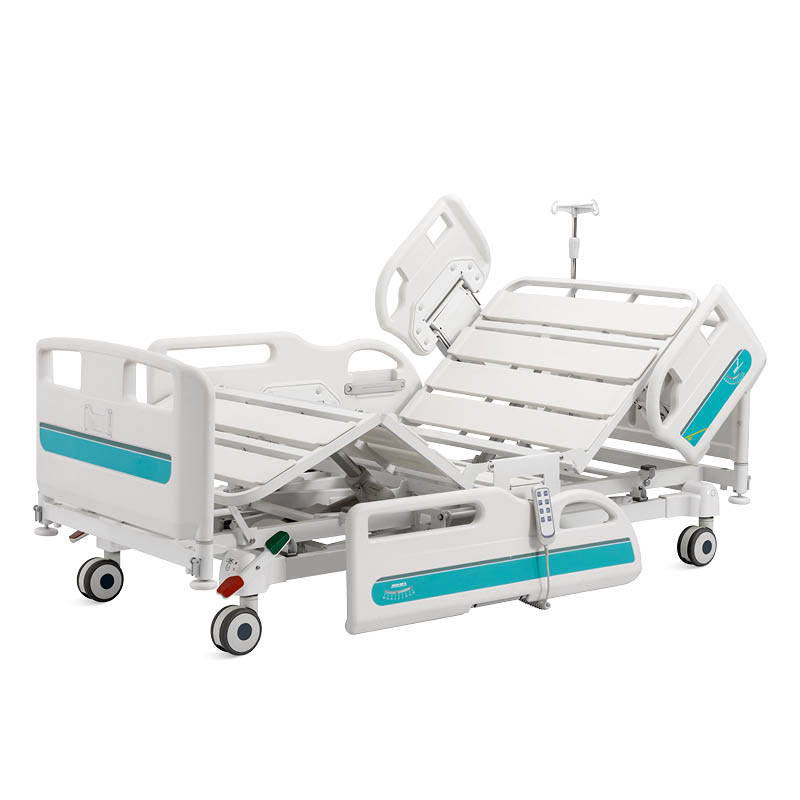

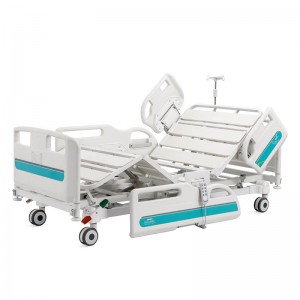

NWD603Y6y Electric hospital bed
Important quality control
* Double auto-regression function
* Super-low bed position 360mm
* PP bed platform, Removable & washable
* PP safety guardrail with two steps unlocking system,patent design
* Angle Indicator for back rest
Optional features (extra charge)
* Manual CPR
* Bed extension 200mm
* Back up battery
* Nurse control panel
* Emergency stop button
* Directional wheels function
* 5th and 6th extra side rail for full protection
* Monkey pole
* Balkan frame
Technical parameters
| External size (LxWxH) | 2130x1050x(360-800)mm |
| Mattress platform | 1925x880mm |
| Safe working load | 250kg |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-35°(±10°) |
| Auto-regression | 100+60 mm |
| Angle indicator | 0-90° |
| Position line | 30° |
Technical configuration
| Linear motor | 3pcs |
| 5″ double side cators, central locking system | 4pcs |
| ABS oasis side rail extra height | 1set |
| ABS oasis bed ends with safe lock | 1set |
| PP bed platform, removable &washable | 9pcs |
| Plastic socket inside PP guardrail for phone or glasses | 2pcs |
| Patent angle indicator for back-rest and trendelenburg position | 4pcs |
| Ø70mm wall bumper wheel | 4pcs |
| IV pole | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
| Central locking pedal | 2pcs |
| ABS mattress stopper | 2pcs |
